Sherpa BOX AIR is compact yet heavy duty, simple to use, portable, 12V Air Compressor, designed to take with you when you go touring or up the beach for a weekend. Designed to generate compressed, oil free air, it’s perfect for a range of applications such as tyre inflation. Supplied in the heavy duty carry case is everything you need for your next off-road adventure.
Portable 12V Air Compressor Kit

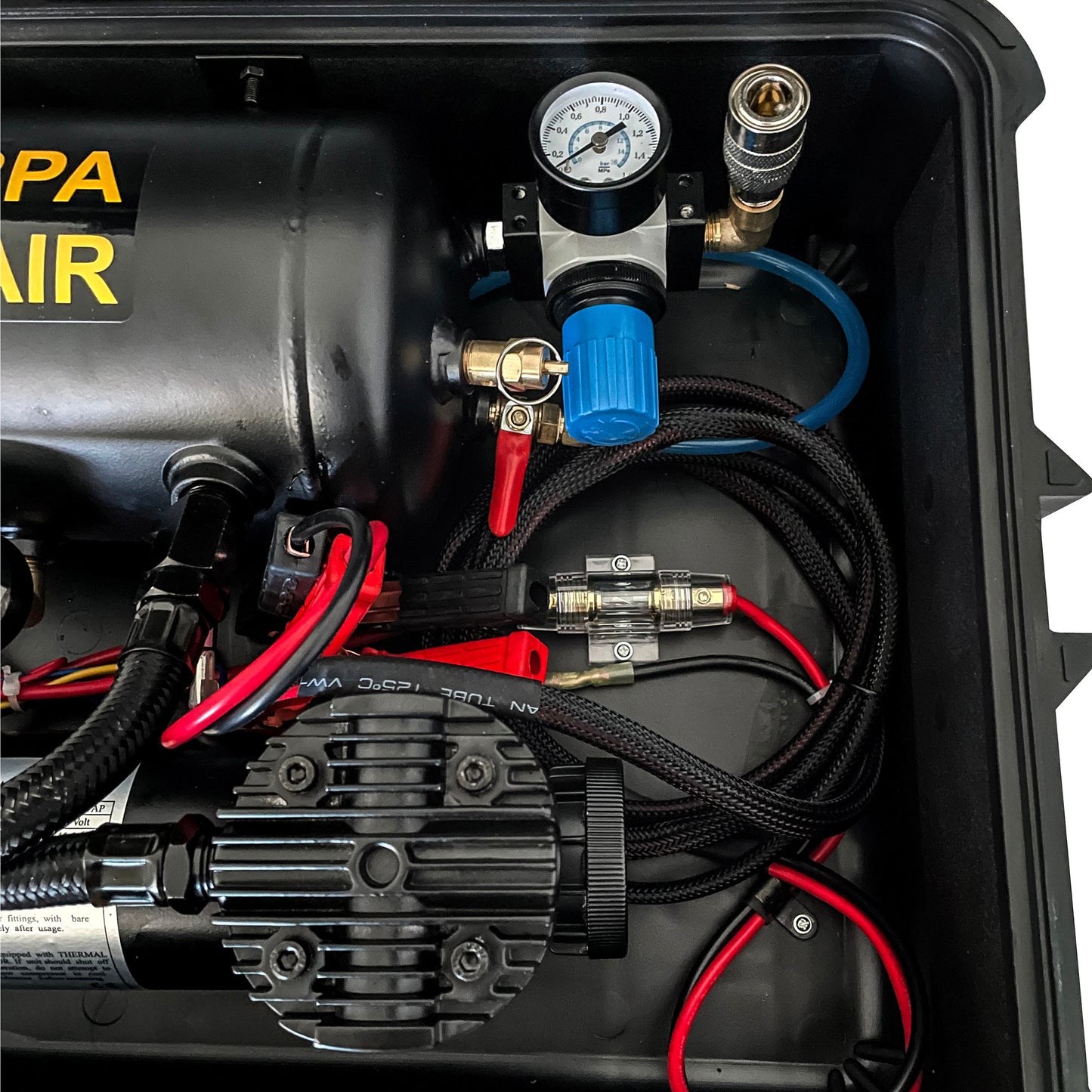

Sherpa deliver a quality and powerful air compressor mounted inside a heavy duty carry case making it a portable and simple addition to your next off-road adventure. Included in the kit is an air receiver tank and pressure switch as well as air line, gauge and power leads. This kit is ready to go and has everything you need to inflate your tyres when you go on your next adventure.
Compressor Features:
- Exceptional Sherpa quality
- High volume air output from dual head compressor
- Integrated air tank, pressure switch and safety relief valve
- Convenient 12V power demand
- Fast tyre inflation with 150 PSI tank air
Build Quality and Performance - Sherpa BOX AIR
When reliability and performance is key, only the highest quality components can be used and this is exactly what the BOX AIR encompasses. The powerful dual head compressor is designed to reach pressures up to 300 PSI which is far more than most users would ever require. Derating the compressor to 150 PSI means it's working below its maximum design capacity and will last. Beware of cheap knock off units running plastic substandard components that simply aren't robust in extreme conditions. Sherpa use the best components to deliver the greatest performance and reliability.
The Sherpa BOX AIR performs thanks to the dual head air compressor. Air flows are further improved by the incorporation of a 3.8L air receiver tank. The unit runs an automated pressure switch which controls the pressure in the tank to between 120 PSI and 150 PSI. Having this reservoir of pressurised air improves tyre inflation times as the compressor is left to run from start to finish and continues to store compressed air as you move between tyres and other activities.
BOX AIR Design
The BOX AIR is contained in an extremely heavy duty, waterproof carry case. This case is easy to pack in your ute, on your roof rack or in the back of your wagon. Lay the BOX AIR out on the sand and you have a stable work platform which houses everything you need for inflation activities. All components fit inside the box easily without complex packing requirements.
| Model | Sherpa BOX AIR |
|---|---|
|
Max. Operating Pressure |
200 PSI |
|
Pressure Switch Setting |
On 120psi / Off 150 PSI |
|
Relief Valve Setting |
180 PSI |
|
Air Tank Volume |
3.8 L |
|
Motor |
12V |
|
Power Draw |
45 amps |
|
Fuse |
60 amps |
|
Solenoid Rating |
100 amps |
|
Duty Cycle |
30% @ 100 PSI |
|
Power Leads |
3m with Alligator clips |
|
Air Line |
6.5m PU |
|
Weight |
15 kg |
|
Dimensions |
550 x 410 x 190mm |
|
Warranty |
12 months |
Performance Data:
| Pressure (PSI) | Current (A) | CFM |
|---|---|---|
|
0 |
16 |
4.2 |
|
40 |
30 |
2.3 |
|
90 |
38 |
1.9 |
|
150 |
41 |
1.6 |
